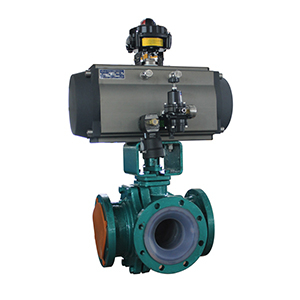

Three Way Ball Valve with Dual Piston Gear Bar Structure And Medium Flow Conversion And Vertical Pipeline Connection From China

Three Way Ball Valve with  Dual Piston Gear Bar Structure And  Medium Flow Conversion And Vertical Pipeline Connection From China

Products description

    A T-shaped tee can connect three channels to each other or connect two of them. Three way ball valves generally adopt a two seat structure, but can also adopt a four seat structure according to user requirements. The actuator adopts a high-performance dual piston gear tooth strip structure, which has high transmission efficiency and compact structure. Alternatively, electric actuators can be used, which are widely used in industries such as petroleum, chemical, power, pharmaceuticals, and papermaking The "T"/"L" three-way ball valve produced by our company is an L-shaped three-way ball valve used for switching the flow direction of the medium, which can connect two perpendicular channels; T-shaped three-way ball valve is used for medium diversion, merging, and flow direction switching..

Specification parameters

Product Characteristics

1. Any port of the three-way ball valve can be used as an inlet without leakage, and can be made into a T or L shape according to the working conditions.

2. After the system is depressurized, maintenance and repair can be carried out without removing the entire valve body;

3. The two seat sealed three-way ball valve has a compact structure, beautiful appearance, and good sealing performance. It can switch the flow direction of the pipeline medium and also connect or close two perpendicular channels;

4. The four seat sealed three-way ball valve has a beautiful appearance and reasonable structure. It can not only switch the flow direction of the medium, but also connect the three channels to each other. At the same time, closing any channel can connect the other two channels, flexibly controlling the merging and splitting of the medium in the pipeline.
