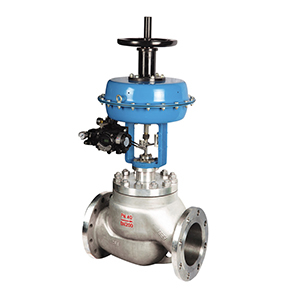

Accurate flow, low noise, overall stable operation, allowing for large pressure difference， M-series pneumatic sleeve regulating valve from China
Product Description
The M series pneumatic sleeve regulating valve developed and produced by our company is a pressure balanced regulating valve, which adopts a sleeve guide and pressure balanced double seal valve core structure. The flow channel is S-shaped and equipped with a multi spring actuator, ensuring smooth overall operation. Features such as large pressure difference, precise flow rate, and low noise are allowed. Especially suitable for high flow rates and large pressure differences before and after valves. In situations where disclosure requirements are not high.
Specification parameters
| Nominal diameter | DN15~DN400 |
| Nominal pressure | PN1.0~PN10.0 Class150~Class600 |
| Working temperature range | -196℃~565℃ |
| Connection method | Flange style Welded type Threaded type |
| Body material | WCB CF8 CF8M CF3M TA C-276 2205 |
| Material of valve internals | 304 304+STL 316 316+STL 316L 316L+STL 17-4PH C-276 |
| Valve cover form | Standard ，Heat dissipation type, Elongate type，Bellows sealed type, Bellows sealed heat dissipation type |
| Traffic characteristics | Equal percentage line |
| Leakage level | Hard seal level IV, V, soft seal level VI (standard ANSI B16.104) |
| Diaphragm actuator | PZM200 PZM280 PZM400 PZM600 PZM1000 PZM1600 |
| Spring range and gas source | 40-200KPa (gas source 0.25MPa) 80-240KPa (gas source 0.3MPa) |
| Input signal | 4-20mA.DC |
Product Features
1. The flow channel adopts an S-shaped structure, which can suppress the vortex generated by the complex shape of the flow path and the complex irregular flow caused by the sudden expansion of the flow path, thereby achieving efficient and smooth medium flow.
2. Adopting modular design, with strong interchangeability and universality; By replacing different sleeves, different flow coefficients and flow characteristics can be obtained.
3. Balanced structure: greatly reduces the unbalanced force on the valve core; At the same time, it also has damping operation, which is conducive to the stable operation of the control valve. By using specially designed symmetrical small holes on the valve internals, noise can be reduced, further pressure reduction can be achieved, and flash evaporation and cavitation can be prevented. It is particularly suitable for various high-pressure and low-noise situations, improving the comprehensive performance of the regulating valve. Therefore, it can be used in applications with large pressure differentials and low noise.
4. Easy installation and maintenance: The valve seat is tightly pressed onto the valve body through the valve cover, without using threaded connections, making installation and maintenance convenient.
5. Due to the use of a simple mechanical structure with a multi spring type small and large output thin film actuator, the height of the regulating valve has been significantly reduced, achieving miniaturization.
6. Using high-precision flow characteristic curve IEC as the standard technical parameter, theoretically achieving "ideal" flow and stabilizing process gain. Under the conditions of computer simulation and process control of valve opening, flexible control can be achieved.
