Historical Data Transfer And Long And Medium-term Color Screen Paperless Recorder And Printing And Remote Communication Functions Paperless Recorder

Historical Data Transfer And  Long And Medium-term Color Screen Paperless Recorder And Printing And Remote Communication Functions Paperless Recorder

Product Description

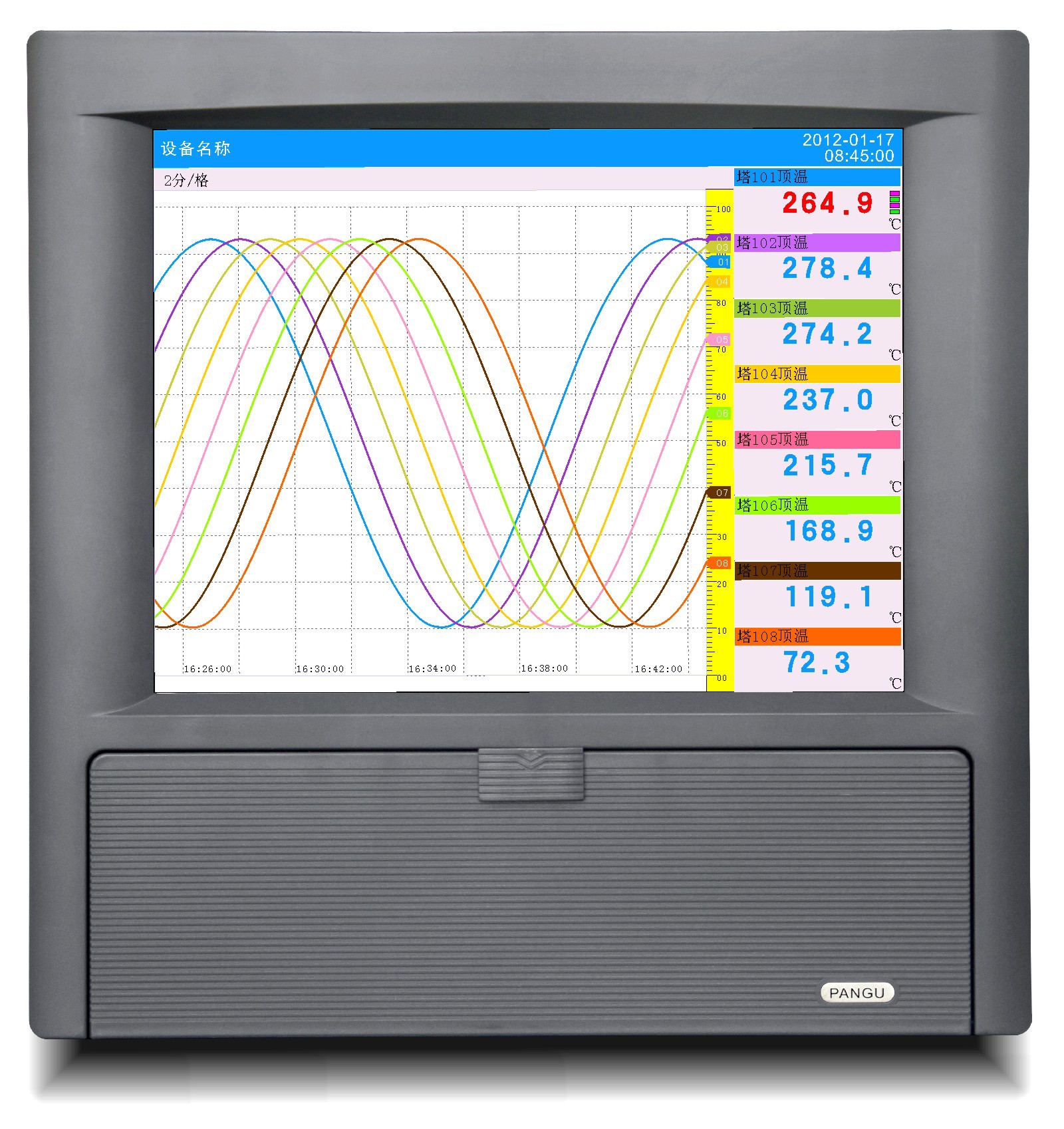

   WP-R303C medium-to-long chart color screen paperless recorder, with 40-channel universal input, can input signals such as standard current, standard voltage, frequency, millivolt, thermocouple, thermal resistance, etc. It features sensor isolation and power distribution output, relay alarm output, transmitter output for flow totalization, temperature and pressure compensation, historical data transfer and storage, printing, and remote communication functions.

Function Features

Using the latest large-scale integrated circuits and carefully designed components from internationally renowned factories.

High speed and high-performance 32-bit ARM microprocessor, with a screen response time of less than 0.5 seconds, capable of detecting, recording, displaying, and alarming 40 signals simultaneously.

10.4-inch 640x480 dot matrix TFT high brightness color graphic LCD display, CCFL backlight, clear picture, wide viewing angle.

Fully isolated universal input, capable of inputting multiple signals without the need for jumpers, can be configured through software.

The new switch power supply operates normally within the range of 85VAC~265VAC.

Integrated hardware real-time clock, the clock can operate accurately even in the event of power failure.

Provide 24VDC isolated power distribution for the transmitter.

Large capacity FLASH flash memory chips store historical data and never lose data in case of power failure.

24 relay alarm outputs.
