Self-cleaning Core V-shaped Cut-off Or Adjustment Regulating Cut-off Ball Valve with Good Sealing Performance And Long Service Life From China
Product Description

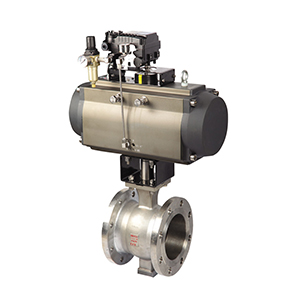

The movable hard seal V-shaped ball valve developed and produced by our company has the characteristics of compact structure, good sealing performance, and long service life. It also has two functions: adjustment and cutting.
The sealing ring form can be selected from metal hard seal and soft seal to meet different working conditions; Simple flow path, large circulation capacity, adjustable ratio up to 1:100; At the moment of closure, a shear action occurs between the V-shaped core and the sealing ring, which can cut off fibers and extrude particulate matter in the medium.
It has a self-cleaning function for the core and is particularly suitable for cutting off or regulating process media such as pulp, sewage, and other media containing fibers and particulate matter. It is widely used in industries such as papermaking, petroleum, chemical, coal chemical, steel, power, and medicine.
Specification parameters
| Nominal Diameter | DN15~DN500 |
| nominal pressure | PN1.0~PN10.0 Class150~Class600 |
| Working temperature range | -40℃~450℃ |
| Connection method | Flange type clamp type (suitable for small diameters) |
| body material | WCB CF8 CF8M CF3M |
| Core material | 304 316 316L 304+STL 304+WC 316+WC 316L+Ni60 |
| seat material | PTFE PPL RPTFE 304+WC 316+WC 316L+Ni60 |
| Traffic characteristics | Approximate equal percentage quick opening |
| Leakage level | Hard seal Class V, VI, soft seal Class VI (standard ANSI B16.104) |
Product characteristics
The valve body adopts an integral design, which avoids the leakage that may be caused by the middle flange connection of ordinary ball valves.
The valve core is designed with a V-shaped notch with a special shape, and the valve has approximately equal percentage flow characteristics. This design provides precise control performance for the valve, while generating significant shear forces and wiping performance between the valve core and sealing seat during movement. It has a cutting effect on media containing fibers and self-cleaning function on media containing solid particles.
The valve core is fixed with double bearings on the upper and lower valve stems, which has high rotational accuracy and stability.
The flow resistance is small, and the flow capacity is 2-3 times that of ordinary single seat regulating valves, making V-shaped ball valves cost-effective.
Due to the valve core being smaller than a hemisphere, the structure is lightweight. Valves have the advantages of small size and light weight. Compared with ordinary 0-type ball valves, they require less switching torque and are easy to operate.
The V-shaped valve has a wide range of applications. According to different working conditions, soft and hard seals can be provided. The valve seat and valve core can be made of spray welded hard alloy or tungsten carbide to meet the requirements of different occasions.
