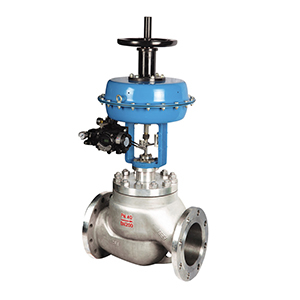

The N series new pneumatic thin film double seat regulating valve developed and produced by our company adopts a dual guide structure and is equipped with a multi spring actuator. It has the advantages of compact structure, light weight, sensitive action, large valve capacity, precise flow characteristics, and easy disassembly and assembly. Widely used for precise control of gas, liquid, steam and other media, process parameters such as pressure, flow rate, temperature, and liquid level are maintained at given values. Especially suitable for media with large pressure differences and a large allowable leakage rate that are not very clean. Widely used in the automation regulation and remote control of industrial production processes such as chemical, petroleum, metallurgy, power plants, textile, papermaking, and pharmaceuticals.

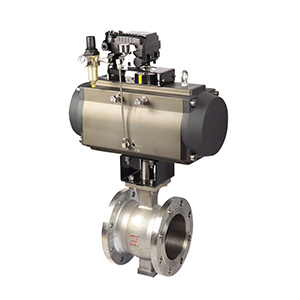

It has a self-cleaning function for the core and is particularly suitable for cutting off or regulating process media such as pulp, sewage, and other media containing fibers and particulate matter. It is widely used in industries such as papermaking, petroleum, chemical, coal chemical, steel, power, and medicine.

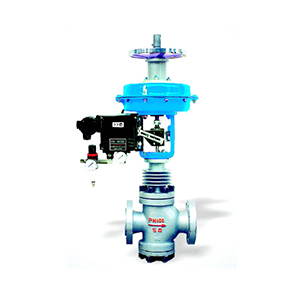

The M series pneumatic sleeve regulating valve developed and produced by our company is a pressure balanced regulating valve, which adopts a sleeve guide and pressure balanced double seal valve core structure. The flow channel is S-shaped and equipped with a multi spring actuator, ensuring smooth overall operation. Features such as large pressure difference, precise flow rate, and low noise are allowed. Especially suitable for high flow rates and large pressure differences before and after valves. In situations where disclosure requirements are not high. The product is widely used in the self-control systems of industrial sectors such as chemical, petrochemical, synthetic fiber, power, metallurgy, and environmental protection

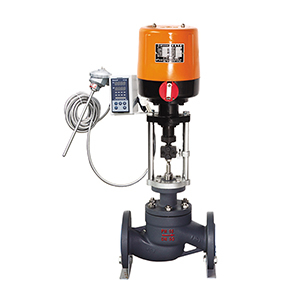

The P series electric temperature control valve produced by our company only requires a regular 220V power supply, and uses the energy of the regulated medium to directly automatically adjust and control the temperature of steam, hot water, hot oil, gas and other media. It can also be used in situations that prevent overheating or heat exchange. The valve has a simple structure, easy operation, wide temperature control range, fast response time, reliable sealing performance, and can be freely adjusted during operation. Therefore, it is widely used in industries such as chemical, petroleum, food, textile, hotels and restaurants.

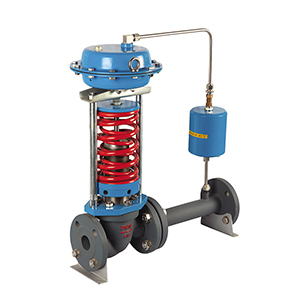

The ZZY series direct acting self operated pressure regulating valve (referred to as pressure regulating valve) produced by our company is a type of actuator that uses the pressure changes of the controlled medium itself to drive the actuator without the need for external energy, achieving automatic regulation and stable pressure.

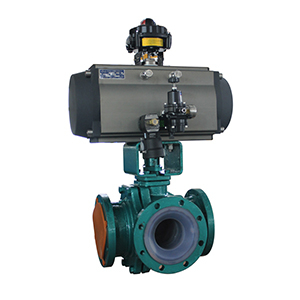

A T-shaped tee can connect three channels to each other or connect two of them. Three way ball valves generally adopt a two seat structure, but can also adopt a four seat structure according to user requirements. The actuator adopts a high-performance dual piston gear tooth strip structure, which has high transmission efficiency and compact structure.

The "O" type cut-off ball valve produced by our company is a two-piece ball valve structure. The valve body consists of two parts, the main and the auxiliary. The ball core adopts a full bore design, with a high rated flow coefficient and negligible flow resistance. The surface of the soft sealed ball core is hardened using a special process to make it smooth and wear-resistant. The valve seat sealing material is carbon fiber reinforced polytetrafluoroethylene; The surface of the hard sealed ball core is treated with sprayed tungsten carbide, which has strong wear resistance. The sealing material of the valve seat is stainless steel welded with Si Ti Lai alloy, which has a long service life. The actuator adopts a high-performance dual piston gear tooth strip structure, which has high transmission efficiency and compact structure. Alternatively, electric actuators can be used, which are widely used in industries such as petroleum, chemical, power, pharmaceuticals, and papermaking.

AK intelligent pressure transmitter is a key product of Xinshangrun Company, characterized by accuracy, efficiency, high quality, and low price. We have been specializing in AK intelligent pressure transmitter production for over 15 years

Xinshangrum is a manufacturer from China specializing in WP363D Monocrystalline Silicon Double Flange Remote Transmitter research and production. We have over 15 years of production experience, and our WP363D Monocrystalline Silicon Double Flange Remote Transmitter series products are exported to all over the world. We welcome your inquiries.
