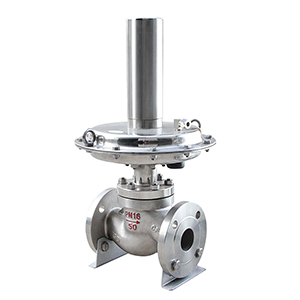

Low Cost And High-precision And Automatic ZZV Micro Pressure Series Regulating Valve with Arbitrary Adjustment of Set Value From China
Product description
The ZZV series micro pressure regulating valve produced by our company does not require any external energy and is an energy-saving product that uses the energy of the regulated medium to achieve automatic regulation.
This series of regulating valves adopts a balanced single seat valve quick opening flow characteristic regulating mechanism, with no packing and frictionless movable components inside.
The medium pressure is stable, the regulating accuracy is high, and it is used for micro pressure control.
The sealing performance is safe and reliable, and the set value can be adjusted arbitrarily during operation.
Therefore, it is suitable for automatic micro pressure regulation of fuel gases, petroleum products in process, nitrogen or other protective gases in oil storage tanks, and heat treatment protective gases in various industrial furnace combustion systems.
Specification Parameters
| Nominal Diameter | DN15~DN250 |
| Nominal pressure | PN1.0~PN1.6 Class150 |
| Working temperature range | -20℃~150℃ |
| Connection method | Flange style |
| Body material | WCB CF8 CF8M CF3M |
| Material of valve internals | 304 304+PTFE 316 316+PTFE 316L 316L+PTFE |
| Traffic characteristics | Quick open |
| Adjusting accuracy | 5% |
| Pressure adjustment range | 0.3KPa~50KPa segmented control |
| Leakage level | Soft seal grade VI (standard ANSIB16.104) |
Product characteristics
No need for external driving energy, low usage cost;
Simple structure and low maintenance workload;
The set point is adjustable and has a wide range, making it easy for users to continuously adjust;
The valve adopts a pressure balance structure to ensure stable medium pressure;
Non filler and frictionless active components, with sensitive adjustment and high control accuracy.
